SUMIPAX ODS J series are general purpose columns where the surface silanol groups of low metal-containing high purity spherical silica gel react to form ODS and then end-capped.
Product specification
SUMIPAX | Particle size (μm) |
Pore size (Å) |
Specific surface area (m2/g) |
Pore volume (mL/g) |
Carbon content (%) |
Useful pH range | Metal impurities (ppm) |
---|---|---|---|---|---|---|---|
Jseries | 3.5 | 120 | 300 | 1.0 | 16 | 2.5~7.5 | Both elements less than 10ppm |
- ※Al, Fe, Ti, Zr, Ca

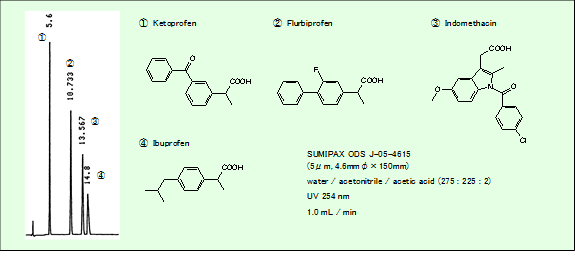

Applications
Arylpropionic acid anti-inflammatory drugs

Product list
SUMIPAX ODS J (3μm)
Product name | Particle size (μm) |
Internal diameter(mm) | Length (mm) |
Product code |
---|---|---|---|---|
SUMIPAX ODS J-03-2015 | 3 | 2.0 | 150 | AJ-03-2015W |
SUMIPAX ODS J-03-4610 | 3 | 4.6 | 100 | AJ-03-4610W |
SUMIPAX ODS J-03-4615 | 3 | 4.6 | 150 | AJ-03-4615W |
SUMIPAX ODS J-03-6015 | 3 | 6.0 | 150 | AJ-03-6015W |
SUMIPAX ODS J (5μm)
Product name | Particle size (μm) |
Internal diameter(mm) | Length (mm) |
Product code |
---|---|---|---|---|
SUMIPAX ODS J-05-2015 | 5 | 2.0 | 150 | AJ-05-2015W |
SUMIPAX ODS J-05-4615 | 5 | 4.6 | 150 | AJ-05-4615W |
SUMIPAX ODS J-05-4625 | 5 | 4.6 | 250 | AJ-05-4625W |
SUMIPAX ODS J-05-6015 | 5 | 6.0 | 150 | AJ-05-6015W |
Catalog list
Contact Us for HPLC Columns
Please contact us for any information on related to HPLC columns.
Materials Division (Column Sales Team)
