Features
Used for reversed-phase systems
Effective for separating a wide range of chiral compounds
AGP is the most versatile, while CBH is effective for separating nitrogen-containing alkaline compounds and HSA for acidic compounds
Product specification
| Product name | AGP | CBH | HSA |
|---|---|---|---|
| Chiral selectors | α1-acid glycoprotein | Cellobiohydrolase | Human serum albumin |
| Support | High purity silica gel | ||
| Particle size | 5μm | ||
| Supporting mode | Chemically bonded | ||
| Recommended mobile phase | Aqueous mixture of phosphate buffer solution and 2-propanol or methanol | ||
| Target compounds | Acidic/basic/neutral compounds | Basic compounds | Acidic compounds |
Product list
| Product name | Particle size （μm） |
Internal diameter（mm） | Length (mm) |
Product code |
|---|---|---|---|---|
| SUMICHIRAL AGP | 5 | 2.0 | 100 | CS-AGP-2010W |
| 150 | CS-AGP-2015W | |||
| 3.0 | 100 | CS-AGP-3010W | ||
| 150 | CS-AGP-3015W | |||
| 4.0 | 100 | CS-AGP-4010W | ||
| 150 | CS-AGP-4015W | |||
| AGP Guard cartridge | 5 | 2.0 | 10 | CS-AGP-2001W |
| 3.0 | 10 | CS-AGP-3001W | ||
| 4.0 | 10 | CS-AGP-4001W | ||
| SUMICHIRAL CBH | 5 | 2.0 | 100 | CS-CBH-2010W |
| 150 | CS-CBH-2015W | |||
| 3.0 | 100 | CS-CBH-3010W | ||
| 150 | CS-CBH-3015W | |||
| 4.0 | 100 | CS-CBH-4010W | ||
| 150 | CS-CBH-4015W | |||
| CBH Guard cartridge | 5 | 2.0 | 10 | CS-CBH-2001W |
| 3.0 | 10 | CS-CBH-3001W | ||
| 4.0 | 10 | CS-CBH-4001W | ||
| SUMICHIRAL HSA | 5 | 2.0 | 100 | CS-HSA-2010W |
| 150 | CS-HSA-2015W | |||
| 3.0 | 100 | CS-HSA-3010W | ||
| 150 | CS-HSA-3015W | |||
| 4.0 | 100 | CS-HSA-4010W | ||
| 150 | CS-HSA-4015W | |||
| HSA Guard cartridge | 5 | 2.0 | 10 | CS-HSA-2001W |
| 3.0 | 10 | CS-HSA-3001W | ||
| 4.0 | 10 | CS-HSA-4001W | ||
| CH Cartridge holder | CSA-CH-3001W | |||
- ※Note: Those shown in red are standard size for analysis.
CH cartridge holder is necesssary for the use of guard cartridge.
SUMIPAX Filter can be used in place of a guard cartridge.
Applications

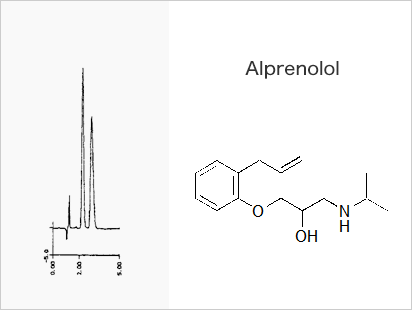

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
10 mmol/L sodium phosphate buffer (pH 6.0)
UV 225 nm ｜ 0.9 mL / min

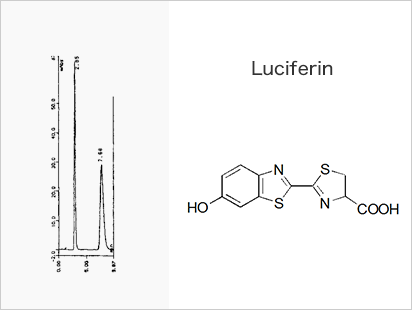

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
3% acetonitrile in 10 mmol/L sodium acetate buffer pH 4.0 (total acetate conc.= 60 mmol/L)
UV 225 nm ｜ 0.9 mL / min

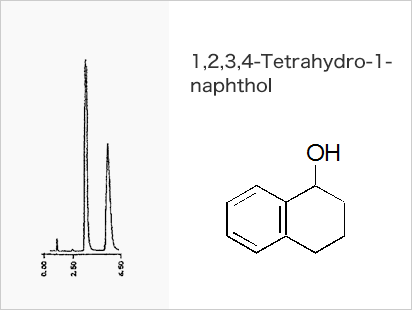

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
10% 2-propanol in 10 mmol/L sodium phosphate buffer(pH 7.0)
UV 225 nm ｜ 0.9 mL / min

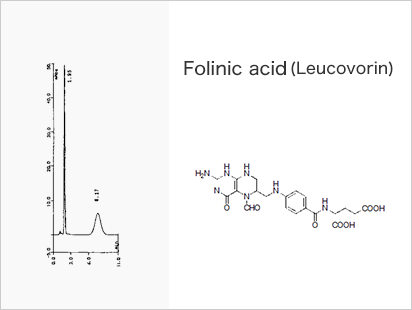

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
25 mmol/L sodium phosphate buffer (pH 7.0)
UV 225 nm ｜ 0.9 mL / min

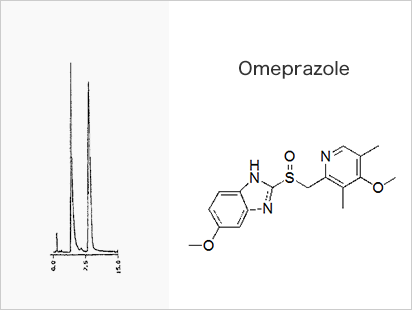

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
3% 2-propanol in 10 mmol/L sodium phosphate buffer(pH 7.0)
UV 210 nm ｜ 0.9 mL / min

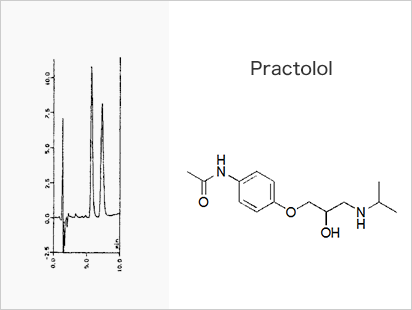

SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
6% 2-propanol in 100 mmol/L sodium phosphate buffer(pH 6.0)
SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
75 mmol/L sodium phosphate buffer (pH 5.0)
UV 225 nm ｜ 0.9 mL / min
SUMICHIRAL AGP
SUMICHIRAL AGP(5μm, 4.0mm i.d.×100mm)
10% acetonitrile in 10 mmol/L sodium phosphate buffer(pH 6.5)
UV 210 nm ｜ 0.9 mL / min
SUMICHIRAL CBH
SUMICHIRAL CBH(5μm, 4.0mm i.d.×100mm)
5% 2-propanol in 10 mmol/L sodium phosphate buffer(pH 6.0) + 50 μmol/L disodium
EDTA
UV 225 nm ｜ 0.9 mL /min
SUMICHIRAL CBH
SUMICHIRAL CBH(5μm, 4.0mm i.d.×100mm)
5% 2-propanol in 10 mmol/L sodium phosphate buffer(pH 6.0) + 50 μmol/L disodium
EDTA
UV 225 nm ｜ 0.9 mL /min
SUMICHIRAL CBH
SUMICHIRAL CBH(5μm, 4.0mm i.d.×150mm)
5% 2-propanol in 50 mmol/L sodium phosphate buffer(pH 7.0) + 50 μmol/L disodium
EDTA
UV 225 nm ｜ 0.9 mL /min
SUMICHIRAL CBH
SUMICHIRAL CBH(5μm, 4.0mm i.d.×100mm)
5% acetonitrile in 50 mmol/L sodium phosphate buffer(pH 7.0) + 50 μmol/L disodium
EDTA
UV 210 nm ｜ 0.9 mL / min
SUMICHIRAL HSA
SUMICHIRAL HSA(5μm, 4.0mm i.d.×100mm)
6% 2-propanol in 100 mmol/L sodium phosphate buffer(pH 7.0)
UV 225 nm ｜ 0.9 mL / min
SUMICHIRAL HSA
SUMICHIRAL HSA(5μm, 4.0mm i.d.×100mm)
5 mmol/L octanoic acid and 10% 2-propanol in 10 mmol/L sodium phosphate buffer (pH 7.0)
UV 225 nm ｜ 0.9 mL / min
