Features
Separates enantiomers by the ligand exchange mechanism using copper ions
Detects many compounds with UV absorption at 254 nm as association of copper ion
Able to inverse the elution order

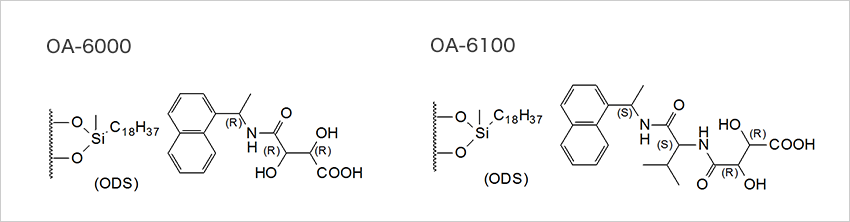

Active site
Product specification
| Product name | SUMICHIRAL OA-6000 | SUMICHIRAL OA-6100 |
|---|---|---|
| Chiral selector | (L)-Tartaric acid | (L)-Tartaric acid, (S)-valine |
| (R)-1-(a-Naphtyl) ethylamine | (S)-1-(a-Naphtyl) ethylamine | |
| Support | High purity silica gel | |
| Particle size | 5μm | |
| Supporting mode | Coating | |
| Recommended mobile phase | Cupric sulfate aqueous solution/alcohols (or acetonitrile) | |
| Target compounds | Amino acids, hydroxy acids, aminoalcohols, amines | |
| Columns for elution order inversion | SUMICHIRAL OA-6000R | SUMICHIRAL OA-6100R |
Product list
| Product name | Particle size （μm） |
Internal diameter（mm） | Length (mm) |
Product code |
|---|---|---|---|---|
| SUMICHIRAL OA-6000 | 5 | 4.0 | 10 | C-6001-4001W |
| 4.6 | 50 | C-6001-4605W | ||
| 150 | C-6001-4615W | |||
| 250 | C-6001-4625W | |||
| SUMICHIRAL OA-6100 | 5 | 4.0 | 10 | C-6101-4001W |
| 4.6 | 50 | C-6101-4605W | ||
| 150 | C-6101-4615W | |||
| 250 | C-6101-4625W |
| Product name | Particle size （μm） |
Internal diameter（mm） | Length (mm) |
Product code |
|---|---|---|---|---|
| SUMICHIRAL OA-6000R | 5 | 4.0 | 10 | C-6011-4001W |
| 4.6 | 50 | C-6011-4605W | ||
| 150 | C-6011-4615W | |||
| 250 | C-6011-4625W | |||
| SUMICHIRAL OA-6100R | 5 | 4.0 | 10 | C-6111-4001W |
| 4.6 | 50 | C-6111-4605W | ||
| 150 | C-6111-4615W | |||
| 250 | C-6111-4625W |
- ※Note: Those shown in red are standard size for analysis.
Internal diameter of 4 mm and length of 10 mm is a guard column.
SUMIPAX Filter can be used in place of a guard column.
Applications

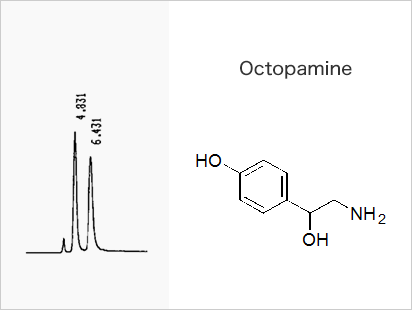

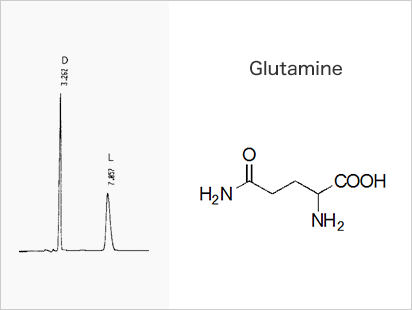

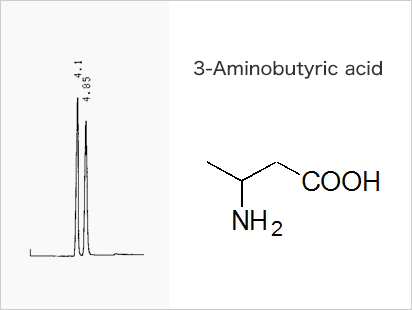

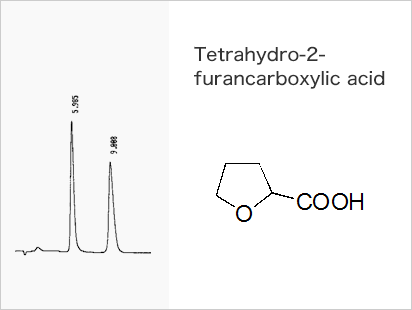

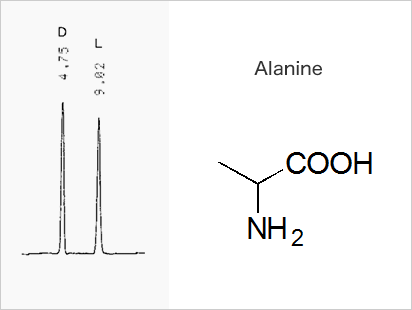

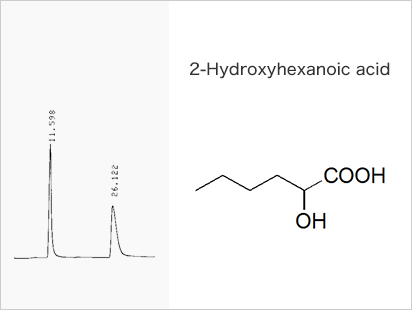

SUMICHIRAL OA-6000(5μm, 4.6mm i.d.×150mm)
1 mmol/L copper (II) sulfate in water
UV 254 nm ｜ 1.0 mL / min
SUMICHIRAL OA-6000(5μm, 4.6mm i.d.×150mm)
0.5 mmol/L copper (II) sulfate in water
UV 254 nm ｜ 1.0 mL / min
SUMICHIRAL OA-6000(5μm, 4.6mm i.d.×150mm)
2 mmol/L copper (II) sulfate in [water / acetonitrile (90 : 10)]
UV 254 nm ｜ 1.0 mL / min
SUMICHIRAL OA-6100(5μm, 4.6mm i.d.×150mm)
2 mmol/L copper (II) sulfate (98 : 2)]
UV 254 nm ｜ 1.0 mL / min
SUMICHIRAL OA-6100(5μm, 4.6mm i.d.×150mm)
1 mmol/L copper (II) acetate in water
UV 254 nm ｜ 1.0 mL / min
SUMICHIRAL OA-6100(5μm, 4.6mm i.d.×150mm)
2 mmol/L copper (II) sulfate in [water / acetonitrile (90 : 10)]
UV 254 nm ｜ 1.0 mL / min
