Features
Usable for both normal phase systems and reversed phase systems
Able to separate a wide range of primary amines

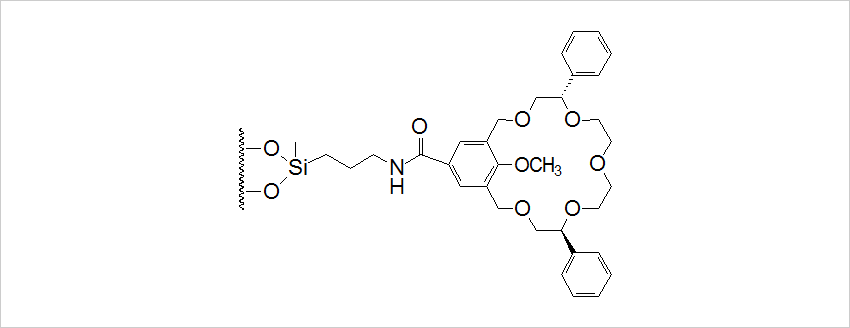

Active site
Product specification
| Product name | SUMICHIRAL OA-8000 |
|---|---|
| Chiral selectors | Pseudo-18-crown-6-ether |
| Support | High purity silica gel |
| Particle size | 5μm |
| Supporting mode | Chemically bonded |
| Recommended mobile phase | [Normal phase] Hexane/ethanol/trifluoroacetic acid |
| [Reversed phase] perchloric acis aqueous solution/acetonitrile | |
| Target compounds | Primary amines |
Product list
| Product name | Particle size （μm） |
Internal diameter（mm） | Length (mm) |
Product code |
|---|---|---|---|---|
| SUMICHIRAL OA-8000 | 5 | 2.0 | 150 | C-8001-2015W |
| 250 | C-8001-2025W | |||
| 4.0 | 10 | C-8001-4001W | ||
| 4.6 | 150 | C-8001-4615W | ||
| 250 | C-8001-4625W |
- ※Note: Those shown in red are standard size for analysis.
Internal diameter of 4 mm and length of 10 mm is a guard column.
SUMIPAX Filter can be used in place of a guard column.
Applications

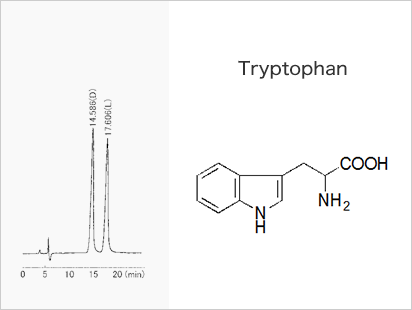

Amino acids/amino acid derivatives
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
hexane / ethanol / trifluoroacetic acid / water(70 : 30 : 0.5 : 0.5)
UV 254 nm ｜ 0.7 mL / min

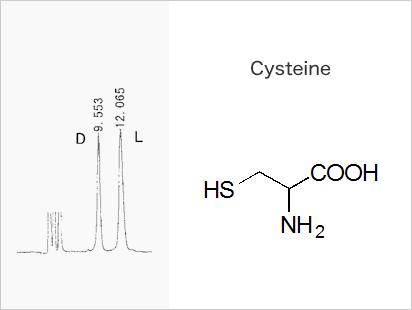

Amino acids/amino acid derivatives
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
hexane / ethanol / trifluoroacetic acid(70 : 30 : 0.5)
UV 223 nm ｜ 0.7 mL / min ｜ 10μL (12.5 mg / mL)

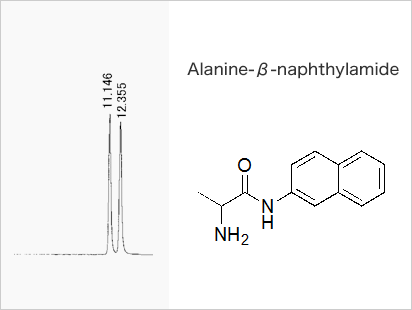

Amino acids/amino acid derivatives
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
hexane / ethanol / trifluoroacetic acid / water(70 : 30 : 0.5 : 0.5)
UV 254 nm ｜ 0.7 mL / min ｜ 2μL (5 mg / mL)

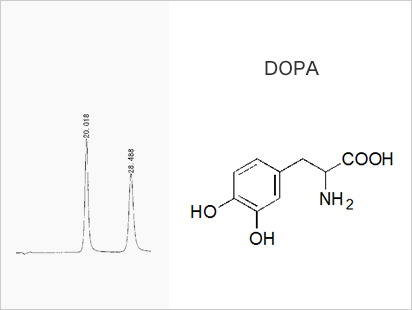

Amino acids/amino acid derivatives
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
perchloric acid (pH 2.0) / acetonitrile (80 : 20)
UV 254 nm ｜ 0.7 mL / min ｜ 1μL (5 mg / mL)

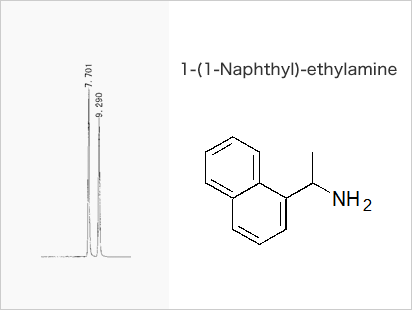

Primary amines, amino alcohols
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
hexane / ethanol / trifluoroacetic acid (70 : 30 : 0.5)
UV 254 nm ｜ 0.7 mL / min

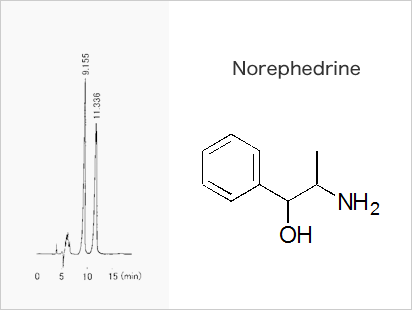

Primary amines, amino alcohols
SUMICHIRAL OA-8000(5μm, 4.6mm i.d.×250mm)
perchloric acid (pH 2.0) / acetonitrile (70 : 30)
UV 254 nm ｜ 0.8 mL / min ｜ 1μL (1 mg / mL)
